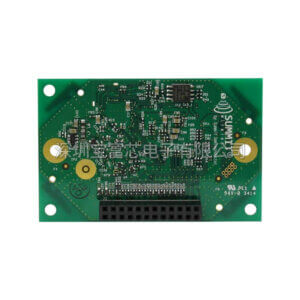

SWS997XD-RX-MODULE 4根集成天线接收模块-延长距离

  • 24 个射频通道,5-5.8 GHz 操作
  • 集成天线
  • 7.1、24 位、48/96 Ksps、未压缩音频
  • 预认证模块,包括适用于多个国家/地区的 DFS
  • 2.6 ms 音频延迟源到扬声器
  • 支持 WiSA 互操作性
  • 支持条形音箱、电视和 AVR 应用程序

详细描述

一般规格
70毫米x45毫米(2.76英寸x1.77英寸)模块
集成高增益、四分集、PCB天线
2x12针连接器到主机放大器板

音频保真度
无线7.1、24位未压缩音频
44.1kHz、48kHz和96kHz音频采样率支持
低延迟、固定、5.1毫秒端到端延迟(在48kHz音频采样率下)
通道间(扬声器到扬声器)延迟误差为±1μs
高达40毫秒的可编程延迟为最大30英尺x30英尺(9米x9米)的房间提供扬声器位置相位对齐支持48kHz音频采样率下视距传输最远可达100米

Summit Wireless Technology
八个独立的音频通道为最终用户提供从 1.0 到 7.4 扬声器系统的可扩展性
支持最多32个有源扬声器的无线音频网络
5GHz低干扰U-NII频段(全球支持)24个非重叠射频通道可用(使用因地区而异)
当在活动射频信道上检测到干扰时,动态频率选择(DFS)会自动且不知不觉地改变信道
FCC第15部分、DFS和WiSA的模块认证

电源要求
3.3VDC±5%,典型值210mA;
1.2VDC±5%,典型值170mA

使用方便
在大多数情况下,自动家庭影院音频设置和音频最佳点编程将设置时间减少到不到30分钟
MyZone™技术可针对家庭影院应用将音频最佳点校准到房间内的任何位置

General Specifications
70 mm x 45 mm (2.76 in x 1.77 in) module
Integrated high gain, quad-diversity, PCB antenna
2 x 12 pin connector to host amplifier board

Audio Fidelity
Wireless 7.1, 24-bit uncompressed audio
44.1 kHz, 48 kHz, and 96 kHz audio sample rate support
Low latency, fixed, 5.1 ms end-to-end delay (at 48 kHz audio sample rate)
Inter-channel (speaker to speaker) delay error of ±1 μs
Programmable delay of up to 40 ms provides speaker position phase alignment support for room sizes up to 30 ft x 30 ft (9 meters x 9 meters)
Line-of-sight transmission up to 100 meters at 48 kHz audio sample rate

Summit Wireless Technology
Eight independent audio channels provide end-user scalability from 1.0 to 7.4 speaker systems
Supports wireless audio networks with up to 32 active speakers
5 GHz low-interference U-NII frequency band (supported world-wide) 24 non-overlapping RF channels available (use varies by region)
Dynamic Frequency Selection (DFS) automatically and imperceptibly changes channel when interference is detected on the active RF channel
Module certifications for FCC part 15, DFS, and WiSA

Power Requirements
3.3 VDC ± 5%, 210 mA typ.;
1.2 VDC ± 5%, 170 mA typ.

Ease of Use
Automatic home theater audio setup and audio sweet-spot programming reduces setup time to less than 30 minutes in most cases
MyZone™ technology calibrates audio sweet-spot to any location in the room for home theater applications
